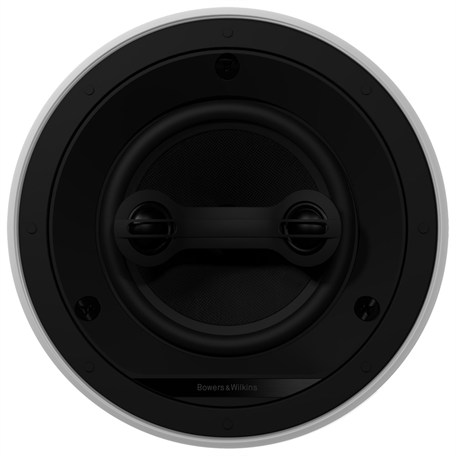

Like the CCM663SR, this is a dual, two-way stereo In-Ceiling speaker combining two offset tweeters and a twin voice coil bass/midrange driver to allow either for a combined stereo signal from one speaker, or for rear-channel surround sound. This speaker features a 150mm (6in) woven glass fibre cone bass/midrange driver and soft dome tweeters, as well as a two-position stereo/surround switch to instantly change between modes.

Description: 2-way dual channel in-ceiling system
Drive Units: 2x ø20mm (1in) soft dome tweeter, 1x ø150mm (6in) black glassfibre cone bass/midrange
Frequency Range (-6dB): 48Hz - 30kHz
Recommended Amp Power: 25 - 80w (per channel)
Sensitivity SPL (2.83V, 1m): 82dB (per channel), 88dB (both channels driven)
Impedance Nominal (min): 8Ω (4Ω) (per channel)
Frame diameter: 240mm (9.5in)
Cut-out diameter: 202mm (8in)
Depth behind surface: 133mm (5.2in)
Protrusion: 4mm (0.2in)


WARRANTY

5 Year Warranty

DELIVERY

Free Delivery (Australia Wide)

2 working days processing period
