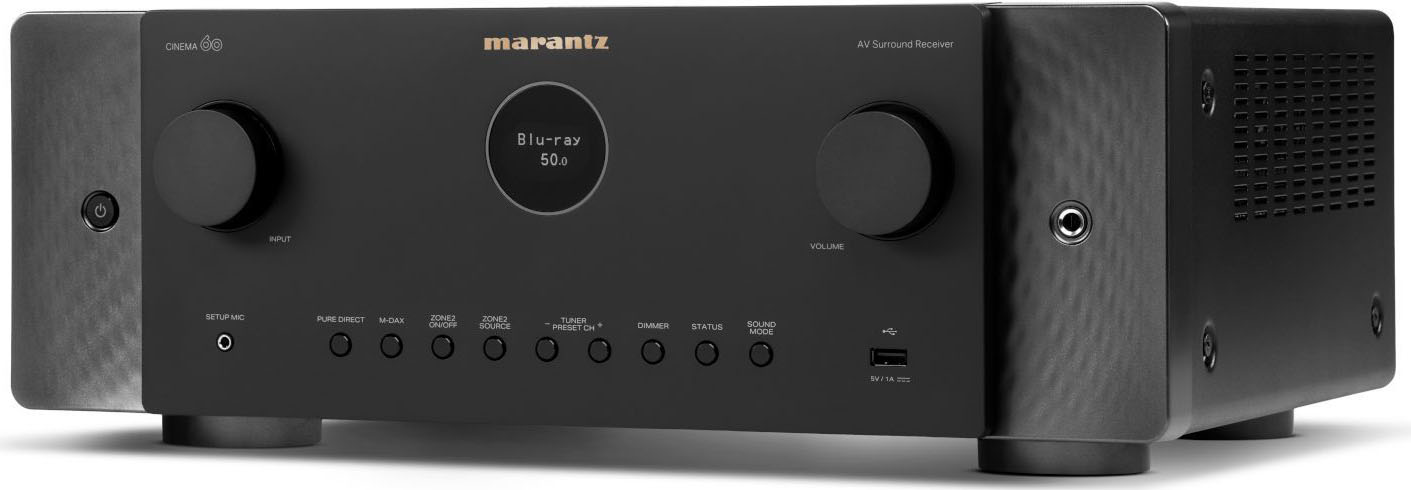

7.2 CHANNEL | 100 WATTS PER CHANNEL AV RECEIVER
High-performance 7.2 channel AV receiver with 100 watts per channel amplification, Dolby Atmos, DTS:X, 8K Ultra HD, and HEOS Built-In streaming. CINEMA 60 is the new standard of foundational luxury home theatre.

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series receivers and amplifiers are the foundation of the world's most demanding home theatres.

Peerless Performance
Immersive spaciousness, warm and rich tone, and lifelike dynamics are legendary hallmarks of Marantz sound.

Technology Leader
CINEMA 60 comes packed with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.

Exquisite Design
A modern expression of timeless design principles, CINEMA 60 includes our iconic porthole, symmetry, and visual cues representing legendary Marantz quality.

Performance
The Marantz Sound Master meticulously tuned CINEMA 60 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.

Style
Excellence is heard and seen. CINEMA 60 features architectural design that can be featured or remain discreet in any luxurious environment.

Customizability
Thoughtfully selected connectivity options, flexible speaker arrangements, and fine-tuning ability allow you to make CINEMA 60 your own.

Effortless
Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away

Compatibility
Six HDMI inputs, plus digital, analogue and phono inputs plus loudspeaker and preamp outputs ensure connectivity to virtually any other components you may have.

Upgradeability
Extensive input and output options plus a powerful software ecosystem make CINEMA 60 easy to upgrade as your home theatre grows

Limitless configuration setup, use as 5.1 or 7.1ch, 5.1.2ch Dolby Atmos or 5.1ch with an additional pair of speakers for 2nd zone. Want to add another subwoofer no problem for this AV Receiver.

Number of Powered Channels: 7

Power Output: (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)100 W

Amplifier Topology: Class A/B

DTS: DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X

HEOS Multi-room and Streaming: Yes

AirPlay Audio Streaming: AirPlay 2

Internet RadioTuneIn: Yes

Spotify*Spotify Connect: Yes

Pandora: Yes

SiriusXM: Yes

Power Amplifier
Number of Powered Channels    7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)    100 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)    140 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)    200 W
70% Guarantee    Yes
Discrete Power Amplifier    Yes
Amplifier Topology    Class A/B
Current Feedback Topology    Yes
Bi-Amp Drive    assignable

Multichannel Surround Technologies
DTS    DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
Dolby    Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
Other
Max Number of Processing (Preamp) Channels    7.1

Inputs / Outputs

HDMI In / Out    6 / 2
Multi-Room Video Out via HDMI    No
Analog In / Fixed Level Out    4 in / 0 out
Phono (MM) In    Yes
Digital In: Optical / Coaxial    2 / 2
Multi-Room Out: analog / digital    1 / 0
Multichannel Preamp Out    7.2
Subwoofer Out    2
7.1 multichannel input    No
Number of Speaker Terminals    7
Speaker A / B    assignable
Multi-Room Speaker Terminal    assignable
Front Inputs    USB-A
USB Audio / Made for iPod / Made for iPhone    Yes / No / No
AM/FM Tuner    Yes

HDMI
Total HDMI Inputs / No. Support 8K    6 / 3
HDCP2.3 support    Yes
HDMI Outputs: Main / Zone    2 / 0
Analog to HDMI Video Conversion    No
HDMI Upscaling    1080P/4K to 8K
Max resolution @ framerate    8K/60Hz, 4K/120Hz
Audio Return Channel    ARC, eARC
Video Dynamic Range    HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming    Yes
Variable Refresh Rate / Quick Frame Transport    Yes / Yes
HDMI Pass-Through in Standby Mode    Yes
CEC    Yes
DSD Audio over HDMI    No
Auto LipSync    Yes

Performance Technologies
Hyper Dynamic Amplifier Modules (HDAM) (List version)    Yes
Pure Direct Mode    Yes

Acoustic / Room Correction
Audyssey    MultEQ XT
Audyssey Dynamic EQ / Dynamic Volume    Yes / Yes
Audyssey LFC    No
Dirac Live Support    No
Variable Cross Over    Yes
Optimized Bass Redirection    Yes
Bass Sync    No

Music File Support
Lossy Formats    MP3 / WMA / AAC
Lossless formats    FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
DSD Audio    2.8 MHz / 5.6MHz
Gapless Playback    FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2    Yes
Network Audio Sharing    Yes

Streaming Services
HEOS Multi-room and Streaming    Yes
AirPlay Audio Streaming    AirPlay 2
Internet Radio    TuneIn
Spotify*    Spotify Connect
Pandora    Yes
SiriusXM    Yes
Other Streaming Services *    Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix
Roon tested    Yes

Network Connectivity
Ethernet Ports    Yes
Wi-Fi (include version / band)    Yes
Bluetooth (Include version)    Yes
Bluetooth Re-transmit for Bluetooth headphones    Yes

Smart Home Integration And Control
Voice Assistant Compatibility    Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android)    Marantz AVR Remote App, HEOS
HEOS Multi-Room Integrated    Yes
HEOS Link Compatibility: IR/ IP    Yes / Yes
Multi-Room zones    2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog    2 Ch / 2Ch / Yes / Yes
Zone Audio Output: Speaker / Preout    Yes / Yes
Zone HDMI Output from HDMI Source    No
Control Connectivity    IP Control / RS232 Control / Web Control / App Control
IR Flasher In    Yes
Marantz Remote Bus    Yes
DC Trigger Output    1
HDMI Diagnostics    Yes

Others
Front Display    port hole OLED
GUI Languages    3
Setup Assistant    Yes
Smart Select on Remote    Yes
Firmware Update by Network / USB    Yes / Yes
ECO Mode    Yes
Auto Power off    Yes
Sleep Timer    Yes

General
Availabe colours    Black
Metal Front Panel    No
System Remote Control    RC049SR
Power Consumption in W    650
Power Consumption No-Sound (ECO on/off) in W    45/ 75
Standby Consumption in W    0.2
CEC Standby Consumption in W    0.5
Network Standby Consumption in W    Less than 2.0

Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm ( 442 x 354 x 235 )
Antenna:Vertical :(W x D x H) in mm 442 x 343 x 165
W/o Antenna:(W x D x H) in mm    442 x 354 x 165
Weight in kg    10.9

What's in the box    Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
