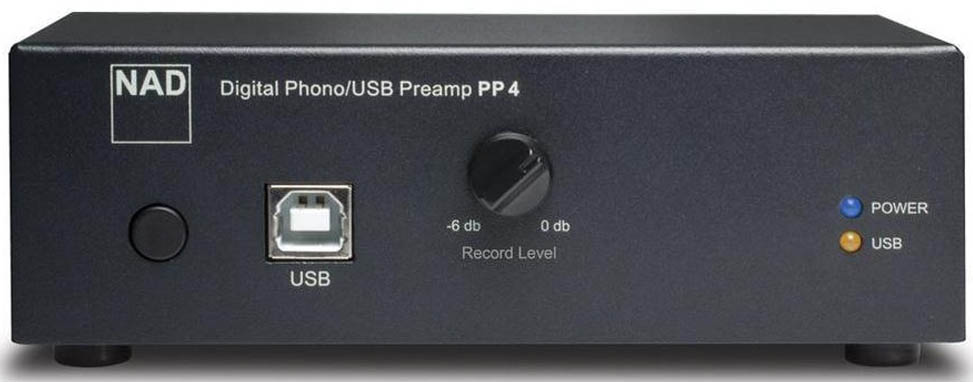

Digital Phono USB Preamplifier

Offering superb and measured sonic performance, NAD combines two simple solutions – Digital Phono and the USB Preamplifier – into one small device

Making it easy to add phono to stereo amplifiers and AV receivers without a phono input.

The PP 4 uses a shielded USB cable and recording level control, which reduces noise and improves the analogue-to-digital conversion process.

• Digitise your treasured vinyl collections to a PC or Mac
• Both MM (moving magnet) and MC (moving coil)
• Line input to allow for the transfer of cassette tapes
• VinylStudio Lite Software for ripping LPs and burning audio CD

Brand NAD

Model PP 4

MC

Input Impedance (R and C)

100 Ohm + 180pF

Gain at 1kHz

58dB

Input sensitivity (ref. 200mV output)

0.38mV

Signal to noise (A weighted, with cartridge connected)

78dB

Input overload (20Hz/1kHz/20kHz)

0.65/6.5/60mV

Rated Distortion (THD 20Hz – 20kHz)

<0.03%

RIAA response accuracy

±0.3dB

Infrasonic filter

-14dB (5Hz)

-3dB (10Hz)

Digital output (USB)

16 bit linear PCM

Sampling frequency

48kHz

Dynamic range

86dB

MM

Input Impedance (R and C)

47 kilohm + 200pF

Gain at 1kHz

35dB

Input sensitivity (ref. 200mV output)

5mV

Signal to noise (A weighted, with cartridge connected)

76dB

Input overload (20Hz/1kHz/20kHz)

10/100/900mV

Rated Distortion (THD 20Hz – 20kHz)

<0.03%

RIAA response accuracy

±0.3dB

Infrasonic filter

-14dB (5Hz)

-3dB (10Hz)

Digital output (USB)

16 bit linear PCM

Sampling Frequency

48kHz

Dynamic range

89dB

Record Level

0dB to -6dB

Gross Dimensions excl. Power supply (W x H x D)*

135 x 49 x 72mm
5 5/16 x 1 15/16 x 2 7/8″**

*Gross dimensions include feet, extended buttons and rear panel terminals.

**Non-metric measurements are approximate.

LINE IN

Input Impedance

47 kilohm + 180pF

Rated Distortion (THD 20Hz – 20kHz)

<0.008%

Signal to noise, A weighted

-115dB

Maximum Input Level

5.3V

LINE OUT

Output Impedance

100 Ohm

Maximum Output Level

5.3V
