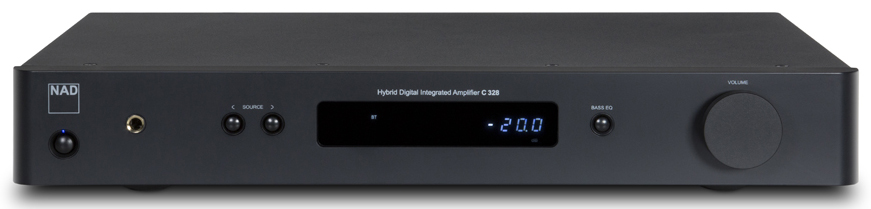

The NAD C 328 delivers the most fundamental of features, while firmly adhering to NAD’s unwavering commitment to exquisite sound.

• Bluetooth streaming
• MM phono input
• Headphone amplifier
• Hybrid Digital amp technology
• Digital and Analog inputs

The C 328 uses an advanced Class D amplifier design for consistent performance. Low noise circuits, precise volume control action, and accurate channel balance are all key characteristics of the C 328.

Its highly efficient power supply provides a noise-free foundation, generating clean power with negligible distortion, to faithfully reproduce the energy and excitement of all your favorite music.

The MM phono stage with precisely correct RIAA equalization, high overload margins, extremely low noise, and an innovative circuit to suppress infrasonic noise that is present on all LPs—all without affecting bass response.

Headphone amplifier with low output impedance and very high output voltage capability, enough in fact to drive even high impedance studio monitor headphones.

The C 328 uses a customised version of the proven Hypex UcD output stage. This allows for massive power with nearly immeasurable distortion and noise in the audible range. Every detail of this design has been carefully crafted and perfectly executed to wring out the best performance possible.


• Class D Asymmetrical PowerDrive amplifier design
• 24-bit/192kHz digital-to-analog converter
• Bluetooth
• Built-in high-output headphone amplifier
• 4 Digital audio inputs (2 optical/2 coaxial)
• 2 Stereo RCA audio inputs
• Phono input for use with a (MM) Moving magnet cartridge
• Subwoofer output
• Full-size headphone jack
• Binding post speaker connectors
• Detachable power cord
• RS-232 port
• Remote control included

What's in the box

• Remote control and battery
• Powercord
• Bluetooth Antenna
• Quick start guide

Technical Specifications

ANALOGUE IN/HEADPHONE OUT

• Continuous output power into 8 Ohms and 4 Ohms 50W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
• THD (20 Hz – 20 kHz)<0.005 % at 1 V out
• Signal-to-Noise Ratio >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
• Frequency response ±0.3 dB (20 Hz – 20 kHz)
• Output impedance 11 ohms

ANALOG IN/SUBWOOFER OUT

• THD (20 Hz – 20 kHz) <0.005 % at 1 V out
• Signal-to-Noise Ratio >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
• Frequency response ±0.2 dB (20 Hz – 20 kHz)
• Output impedance 200 ohms

ANALOG IN/SPEAKER OUT

• THD (20 Hz – 20 kHz) <0.03 % (100 mW to 40 W, 8 ohms and 4 ohms)
• Signal-to-Noise Ratio >95 dB (A-weighted, 500 mV input, ref. 1 W out 8 ohms)
• Frequency response ±0.3 dB (20 Hz – 20 kHz)

PHONO IN/SPEAKER OUT

• THD (20 Hz – 20 kHz) <0.03 % (200 mW to 40 W, 8 ohms and 4 ohms)
• Signal-to-Noise Ratio >75 dB with IHF MM cartridge (A-weighted, ref. 5mV input 1 kHz and 1W output in 8 ohms)
• Frequency response(RIAA deviation) ±0.3 dB (20 Hz – 20 kHz)

Note:The RIAA response is consistent with a pre-emphasis that is rolled off at 50kHz by a second order filter, such as used in Neumann cutting lathes.

Power consumption

• at ECO Standby mode 0.5 Watts*
• at Control Standby mode 0.6 Watts**
• OFF mode (Power switched OFF) 0 Watts


* – After 20 minutes of no user interface interaction and no active source input
** – With established wireless Bluetooth connectivity and 20 minutes of no user interface interaction and no active source input

NOTE: Bluetooth connectivity is always live when configured.

Dimensions & Weight
Gross dimensions (WxHxD)435 x 70 x 285 mm (17 1/8 x 2 13/16 x 11 1/4″)
Net weight 4.9 kg
Shipping weight 5.9 kg
